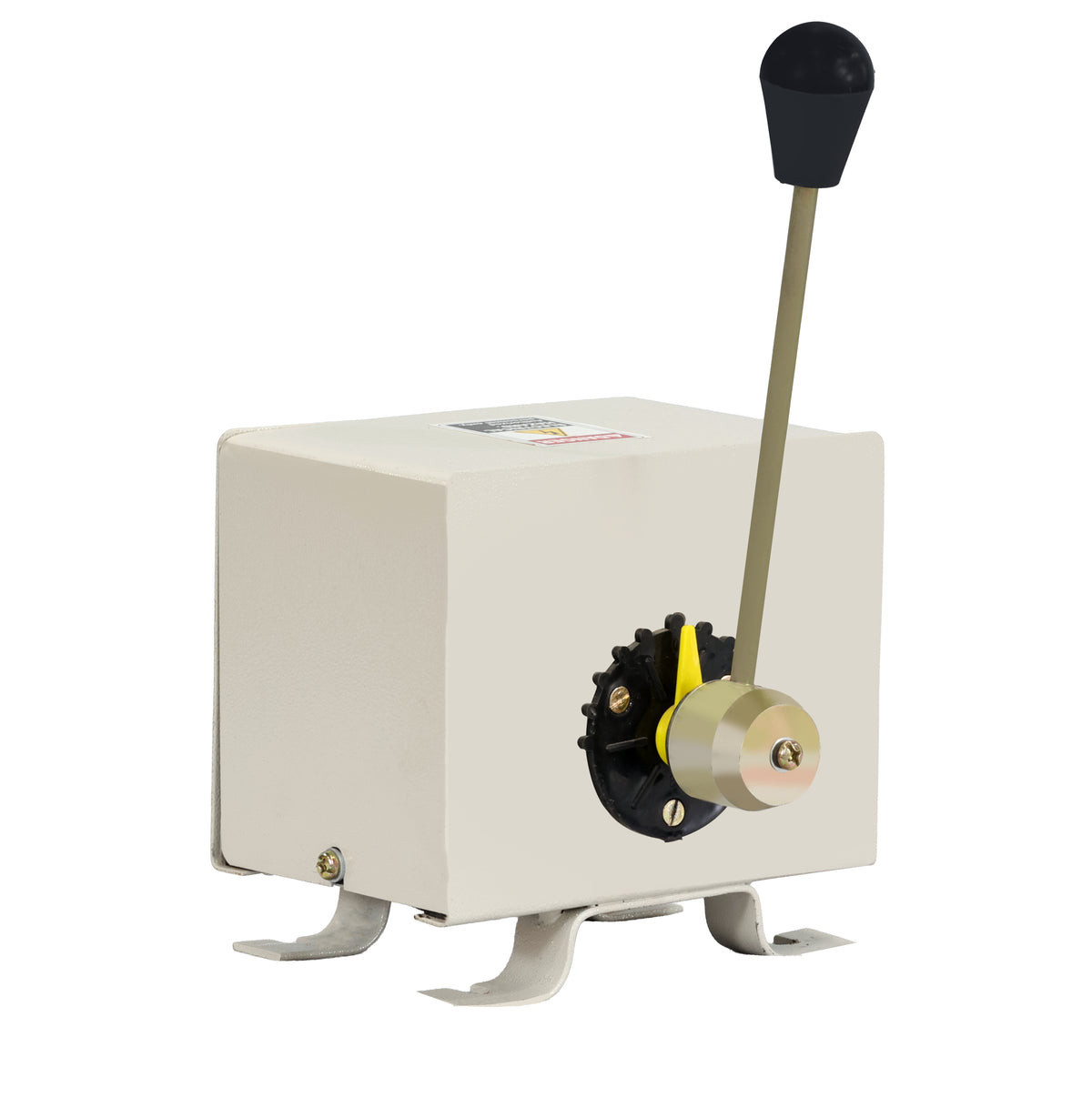

MASTER CONTROLLER - MC-5/9

MASTER CONTROLLER - MC-5/9

Rs. 5,800.00
PREPAID Available
COD Unavailable
Description +

Master controllers are used for operation of contractor's equipment controlling E.O.T. Cranes  & Rolling mills drives. The controllers are made in dust proof enclosure in IP-54 degree of protection, up to 6 notches either side with maximum 24 contacts as per desired sequence with spring return arrangement & deadman's handle arrangement are available Master Controllers are compact up to 4-0-4 step suitable for Grab-Hoist, CT-LT maximum contacts 16 per motion with spring return arrangement.

Key Technical Specifications +

Master Controller for 5 Step/9 Cams

Body Material : MS sheet
Enclosure : IP-44 / IP-54
Mounting Position : Horizontal/Vertical
Rated Voltage : 500 V
Cable entry : 2x 20/2x26 Conduit
Thermal Test Current : 40 amp
Frequency of operation : 1000 switching per hour
No. of contacts : 24 maximum
No of step : 6-0-6 maximum
Optional arrangement : Spring return/deadman's
Handle Contact Material : Sliver Cadmium
