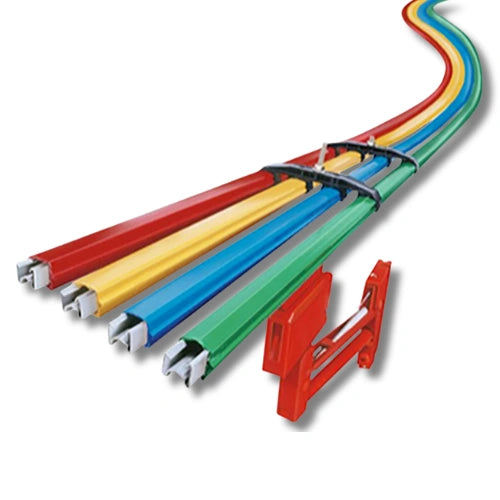

125A GI D Pole DSL Busbar

Rs. 15,000.00

PREPAID Available

COD Unavailable

Call us at +919016290812

Buy on Chat

Request for a Quote

Description +

The 125A GI D Pole DSL Busbar from CMKKart is engineered to deliver safe, stable, and efficient power transmission for EOT cranes and material handling systems. Built with high-quality galvanized iron conductors and robust insulation, this busbar system ensures long service life, reliable performance, and enhanced operator safety in demanding industrial environments.

Key Technical Specifications +

Rated Current: 125 Amp
Conductor Material: Galvanized Iron (GI)
Pole Type: D Pole configuration
Voltage Rating: Up to 690 V AC
Insulation: Heavy-duty PVC shrouded housing for superior protection
Standard Lengths: 4 meters / 6 meters
Mounting Options: Side-mounted or suspended installation
Operating Temperature Range: −20°C to +55°C
Protection Class: Finger-safe and shockproof design

Accessories +

Line joint set
End caps
Suspension hanger clamps
Expansion joints (as required)
Complete mounting hardware for quick and secure installation

Application +

Ideal for use in EOT cranes, monorail systems, cross travel, and long travel applications, the 125A GI D Pole DSL Busbar by CMKkart provides a dependable power supply solution for modern material handling operations.
