Suitable for H.P.:3.0 RPM:1400
Key Attributes:
Note: Corporate volume discounts applied at formal quotation stage.
| Manufacturer Model No | EMD-190 |
| CMK Internal SKU | CMK-EMD190 |
| Brand / Manufacturer | CMK OEM |
| Category | EOT Crane Components |
| Product Line / Subcategory | Magnetic Disc Brakes |
| RPM | 1400.0 |
| Phase | 3 Phase |
| Units | pcs |
| Application | Brake motors, hoists, cranes, material handling, goods lifts, printing machinery, woodworking machinery, steel plant machinery, tire machinery, textile machinery, storage & retrieval systems, industrial presses and other industrial equipment. |
| Brake O.D. (mm) | 193.0 |
| Motor HP Compatibility | 3.0 HP @ 1400 RPM |
| Standard Unit of Measure | pcs |
| Standards & Quality Compliance | IS/IEC 60947 |
| Manufacturer Warranty | 12 Months OEM Warranty |
Engineering & Technical Overview

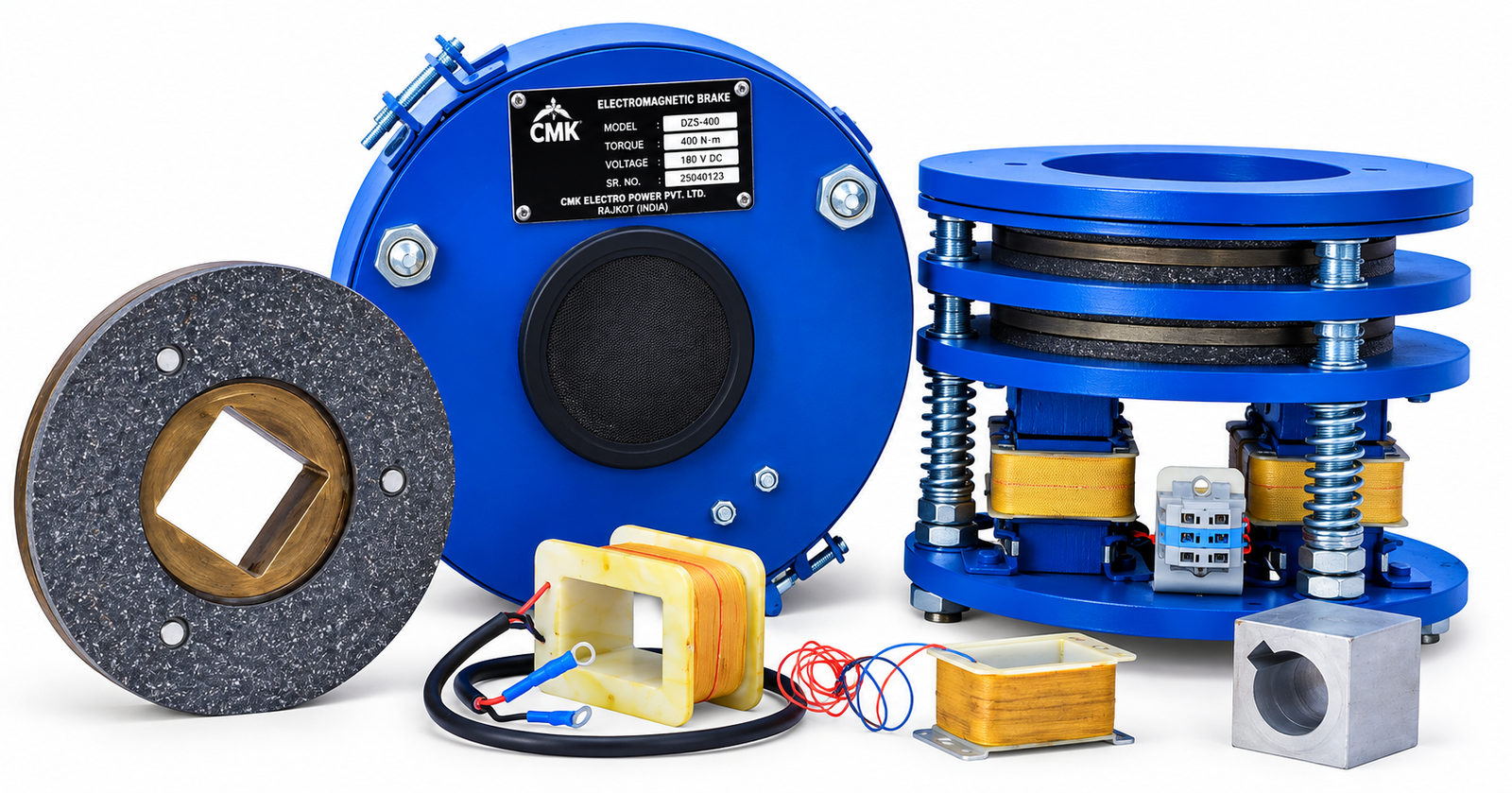

The Suitable for H.P.:3.0 RPM:1400 is a high-torque electromagnetic fail-safe brake engineered by CMK Electro Power for compact, high-precision stopping on electric motors, crane hoists, and machine drive shafts. Operating under spring force when de-energized, the internal electromagnetic coil lifts the friction armature plate instantly upon power application, delivering rapid response times (under 50ms) and zero idle drag torque. Equipped with high-friction asbestos-free friction discs and manual release screws for emergency servicing.
Industrial Applications & Machinery
Braking and load holding on crane electric hoists and geared motor units.
Automated packaging machines, textile looms, and industrial printing presses.
Machine tool spindles, automated CNC rotary tables, and indexing conveyors.
Wind turbine pitch actuators, industrial escalators, and stage lifting machinery.
Direct mounting on IEC and NEMA motor end-shields for fail-safe braking.
Key Operational & Safety Benefits
Rapid Response Braking
Millisecond-fast coil actuation delivers immediate stopping precision with zero slip.
Compact Footprint
Direct motor-flange mounting fits constrained machine envelopes without external linkages.
Asbestos-Free High-Friction Liners
Premium friction material delivers consistent torque with minimal pad wear.
Manual Release Mechanism
Integrated emergency hand-release screws allow manual load lowering during power outages.
Zero Idle Drag
Fully floating disc design prevents parasitic motor drag when energized, maximizing electrical efficiency.
Statutory & International Compliance Certifications
Official CMK Electro Power statutory accreditations, international test compliance, and quality standard certificates.
