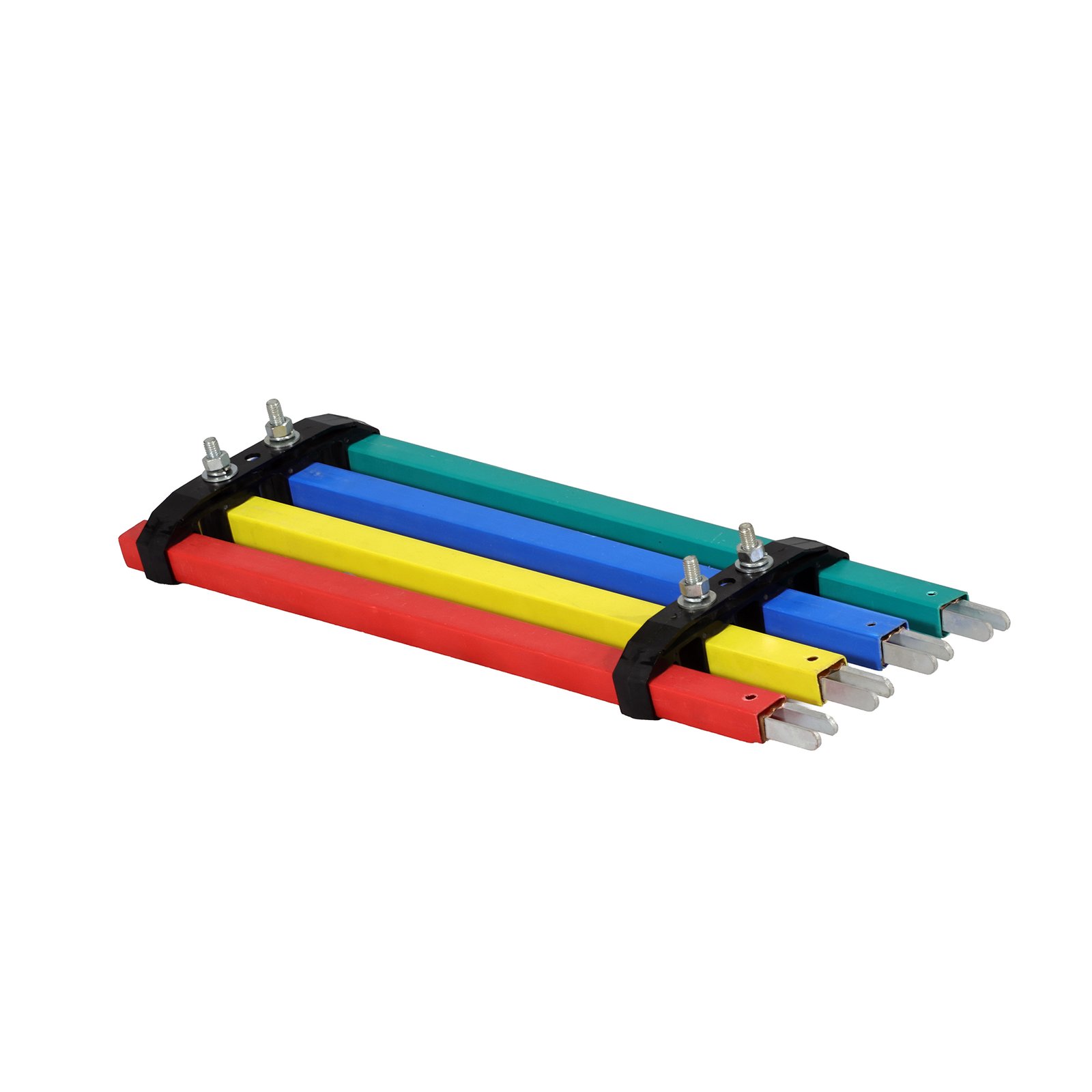

125A(1mm),GI,4 Pole Pin Joint,DSL Shrouded Bus bar System with All Accessories
Key Attributes:
Accessories (Quantity)
Enter total length to see required quantity
| Accessory | Qty |
|---|---|
| Hanger Clamp | 50 |
| Slice Cover | 48 |
| End Cap | 4 |
| End Power Feed | 4 |
| Jointing Tool | 1 |
| Manufacturer Model No | SL1-125A4P |
| CMK Internal SKU | CMK-SL1125A4 |
| Brand / Manufacturer | CMK OEM |
| Category | Power distribution system |
| Product Line / Subcategory | Shrouded Busbar System |
| Units | m |
| Joint Type | Pin Joint |
| Accessories | With All Accessories |
| No. of Poles | 4 Pole |
| Current Rating | 125A |
| Standard Length | 4 Mtrs |
| Conductor Material | Galvanised Steel (GI) |
| Cross Section Area | 63 mm² |
| Conductor Thickness / Dimension | 1mm |
| Rated Current | 125A |
| Number of Poles | 4 Pole |
| Standard Unit of Measure | m |
| Standards & Quality Compliance | IS/IEC 60947 |
| Manufacturer Warranty | 12 Months OEM Warranty |
Engineering & Technical Overview
The 125A(1mm),GI,4 Pole Pin Joint,DSL Shrouded Bus bar System with All Accessories is an industrial-grade shrouded conductor busbar solution engineered by CMK Electro Power to supply uninterrupted three-phase electrical power to moving overhead cranes, hoists, and automated material handling equipment. Fabricated using High-Conductivity Extruded Aluminium Alloy (Al) and enclosed in a high-dielectric, flame-retardant UV-stabilized PVC housing, this Pin-Joint system guarantees low contact resistance, minimal voltage drop over extended crane runways, and complete finger-safe IP23 touch protection. Designed and factory-tested under strict ISO 9001:2015 quality standards, it withstands aggressive industrial environments, high mechanical vibrations, and continuous duty cycles.
Industrial Applications & Machinery
Electric Overhead Travel (EOT) Cranes and Goliath/Gantry runway electrification systems.
Heavy fabrication workshops, steel melting shops (SMS), rolling mills, and foundries.
Automated monorail conveyors, transfer cars, and storage and retrieval systems (ASRS).
Shipyards, marine container handling ports, and railway maintenance workshops.
Chemical, cement, and power generation facilities requiring dependable continuous power feeding.
Key Operational & Safety Benefits
Touch-Safe Electrical Protection
Fully shrouded IP23 insulated housing eliminates accidental contact hazards for runway personnel.
Low Voltage Drop & High Conductivity
Precision High-Conductivity Extruded Aluminium Alloy (Al) conductor cross-section ensures high electrical efficiency even across long spans.
Rugged Mechanical Durability
Engineered with high-strength thermal expansion tolerance to resist track warping in fluctuating ambient temperatures.
Rapid Assembly & Maintenance
Precision Pin-Joint alignment enables quick modular track installation and minimized plant shutdown time.
Zero Defect Manufacturing
Certified to ISO 9001:2015 and compliant with IS/IEC electrical apparatus standards.
Statutory & International Compliance Certifications
Official CMK Electro Power statutory accreditations, international test compliance, and quality standard certificates.
